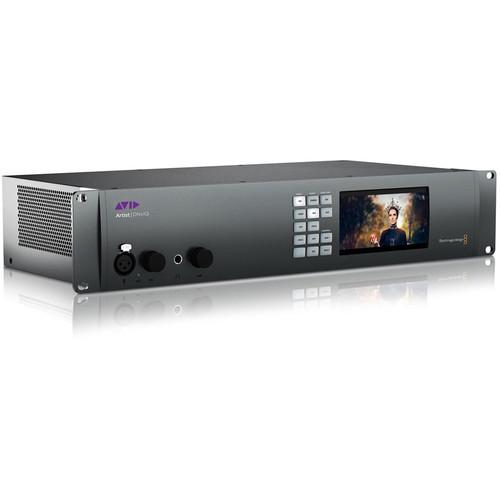

Product description The Artist | DNxIQ from Avid Technologies offers a built-in hardware encoder to capture to Avid DNxHR, enabling you to edit 4K files easily and speed up your workflow. It also enables you to see exactly what media is being ingested or sent out of production through the built-in front-panel HD LCD. You can change your source or time code input with the press of a button.
The DNxIQ allows you to work with 2K or 4K media and HD with the onboard, real-time down-converter, enabling you to transition to high-res at your own pace. Equipped with Thunderbolt 3 connectivity, it provides bandwidth up to 40 Gb/s to your Mac or Windows-based host computer (Avid Artist | DNxIQ also offers optional PCIe connectivity). This device offers accelerated Universal Mastering that enables you to deliver broadcast/final masters in virtually any format. The interface offers real-time format and frame-rate conversion on all baseband SDI, HDMI, and analog output connections. - Supports 12G/6G/3G-SDI, Optical, HDMI 2, and AES/EBU connectors
- Supports XLR, LTC, RS-422, composite, component, and a headphone jack
- Allows you to monitor 5.1 and 7.1 surround sound mixes
- Offers eight channels of audio through SDI and HDMI (embedded audio)
- Allows to view your work across a gamut of color spaces, including HDR monitoring
- Onboard 3D processing to support 3D stereoscopic workflows
- Captures recordings through direct audio punch-ins to the Media Composer timeline using the front-panel XLR microphone input
- Audio interface that provides 48V of phantom power
- Support a wide range of video formats, including 4K (DCI), 2K (DCI), UHD, 1080p, 1080i, 720p, NTSC, and PAL
- Condenser mics without requiring a separate audio interface or power supply
In the Box Avid Artist | DNxIQ Upgrade from Nitris DX or Mojo DX (Trade-In) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avid Artist | DNxIQ Upgrade from Nitris DX or Mojo DX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvid 9925-65425-00 Specs | | | Video Formats | SD: PAL (625, 50i, 576p), NTSC (525, 29.97i, 480p)
HD: 720p (50, 59.94, 60), 1080i (50, 59.94, 60), 1080psF (23.98, 24, 25, 29.97, 30), 1080p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60)
2K: 23.98psF, 24psF, 25psF, 23.98p, 24p, 25p
Ultra HD: 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p
4K: 23.98p, 24p, 25p (SDI only) | | Audio Sample Rate | 24-bit, 48 kHz (television standard) | | Color Spaces | YUV 4:2:2, RGB 444, REC 601, REC 709, BT 2020, P3; 12-bit (SDI) or 10-bit (HDMI); 1D and 3D LUT support | | | | SDI Video Input | Two 12 Gb/s and two 3 Gb/s connectors (SD/HD/2K/UHD/4K)
Supports single, dual, and quad link inputs (4:2:2 / 4:4:4)
2D/3D switchable | | SDI Video Loop | 4 x reclocked SD/HD/2K/UHD/4K linked to corresponding inputs | | SDI Video Output | Two 12 Gb/s and two 6 Gb/s connectors (SD/HD/2K/UHD/4K)
Supports single, dual, and quad link outputs (4:2:2 / 4:4:4)
2D/3D switchable | | SDI Video Repeated Output | 2 x 12 Gb/s and 2 x 3 Gb/s SD/HD/2K/UHD/4K
Supports single, dual, and quad link outputs (4:2:2/4:4:4)
2D/3D switchable | | Analog Input | One component YUV via three BNC connectors (SD-YCbCr, HD-YCbCr/RGB)
One composite NTSC/PAL via one BNC connector (SD) | | Analog Output | One component YUV via three BNC connectors (SD-YCbCr, HD-YCbCr/RGB)
One composite NTSC/PAL via one BNC connector (SD) | | Digital I/O | Two optical I/O supporting 3Gb/s and 6Gb/s | | HDMI I/O | HDMI 2.0 type A connectors | | | | Analog Input | Four channels of balanced analog audio input via XLR
Two-channel RCA input
One front-panel mic input via XLR with 48 V phantom power | | Analog Output | Four channels of balanced analog audio output via XLR
Stereo headphone output with volume control | | Digital I/O | Two channels of unbalanced AES/EBU I/O, with sample rate conversion, via BNC connectors
Eight channels of HDMI I/O embedded in SD, HD, UHD, 2K, and 4K | | SDI I/O | 8 input and 8 output audio channels embedded in SD
16 input and 16 output channels embedded in HD, UHD, 2K, and 4K | | | | Computer System | One Thunderbolt 3 (cable sold separately)
One PCI Express (card/cable sold separately) | | Device Control | Two Sony-compatible RS-422 deck control ports | | | | UHD/HD Down Conversion | UHD to 1080 HD (SDI output only), HD to SD | | HD Up Conversion | SD to HD (input only) | | Cross Conversion | 720p to 1080i, 1080i to 720p | | Color Space Conversion | Yes | | Keyer | Real-Time: Alpha channel over video or matte, or frame buffer over incoming video or matte | | 3D Processing | Frame compatible/frame packed | | Codec Support | Onboard DNxHR encoding for capture workflows (requires Media Composer 8.4.5 or higher, or a software application that has enabled this capability) | | | | Clock Sources | Genlock/reference clock (BBG or tri-level), genlock/reference clock output/pass-through (BBG or tri-level), SDI (SD and HD), HDMI | | Timecode Input & Output | 1 x XLR timecode input
1 x XLR timecode output | | SDI Ancillary Data Support | SDI VITC reader, RP188, NTSC closed captioning, HD-SDI closed captioning, pass-through all (HD, 4K) | | Power Supply | Two built-in international AC power supplies with IEC C14 inlet (120 to 240 V, 50 to 60 Hz) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to -113°F (-20 to 45°C) | | Relative Humidity | 0-90% non-condensing | | Dimensions | 2U rack
With Rack Ears: 3.5 x 19 x 9.5" (88.4 x 482 x 242 mm)
Without Rack Ears: 3.5 x 16.5 x 9.5" (88.4 x 420 x 242 mm) | | Weight | 8.6 lb (3.9 kg) | | | | Package Weight | 13.2 lb | | Box Dimensions (LxWxH) | 22.6 x 13.9 x 8.4" |
